VMware vCloud 5.1 Networking for dummies

In April of this year I finally was able to take the “VMware vCloud: Deploy and Manage the VMware Cloud” course lead by  Mr. Eric Sloof himself. The training was based on vCloud Director 1.5 and I learned quite a lot and really thought I had this vCloud networking thing in my fingers. The exercises in class where easy to complete and made sense to me. Ok, Ok, I do admit I was sometimes struggling with the fact that I knew what I wanted to configure but didn’t always know where to configure it. Like creating a NAT rule to a static IP or opening some firewall ports. But in the end, it all worked. At home I didn’t get the time to play with vCloud and when I finally did get time, vCloud Director 5.1 was just released.

I completely rebuilt my home lab, add a new physical switch and two new hosts with 32GB RAM each and started playing with vCloud Director. Boy, was I confused on the networking part. Installing vCenter 5.1, ESXi 5.1 and vCloud 5.1 was a breeze, but getting any vCloud deployed VM to talk to the internet was pretty hard. It isn’t once you know how to, but when trying to figure out how you’ll notice that the VMware vCloud Admin Guide and Installation Guide don’t explain the networking concept very well. Therefore I decided to write this blogpost, mostly for myself but hopefully also for you, to better understand basic networking in vCloud and how to configure it.

Warning: Keep in mind that I’m also still learning and I might sometimes explain things a bit too simplistic, but I try to be as accurate as possible. Use this post to get a quick-start on vCloud networking.

The Plan

My vSphere environment consists of 5 ESXi 5.1 hosts. Three small hosts all have 8GB RAM and run all the VMs that make the vCloud, my SQL Server, my Domain Controller, etc. This is my management cluster. The two ESXi hosts with 32GB each only run VMs and vApps from vCloud.  My home network is the 192.168.0.0/24 range and the default gateway (192.168.0.254) is my firewall to the big bad internet. The management cluster is not using any VLAN tagging and for the vCloud Environment I now have reserved a set of VLANs (200-205) named dvPG-vCloud-200 through dvPG-vCloud-205. Also there is a dvPG-ExternalCloud without VLAN ID, which will be used to connect the external network.

You can’t start a good network design if you don’t have a plan. I created a network design in which a number of different configurations are present and it will be my challenge to make them work and understand how they work. Walk with me on my little journey. When you look at the network design I made, you’ll see that the first task is going to be simple:

  • Create a vApp of two VMs
  • Connect them directly to an organizational network which will have the range: 192.168.10.0/24
  • Use NAT translation to give them internet access
  • The VMs will get their IP address through DHCP
  • The green arrows show that vm01 should be able to ping vm02, the gateway, the DNS server on the home network and get internet access.

Vcloud networking fase0

Create an external network

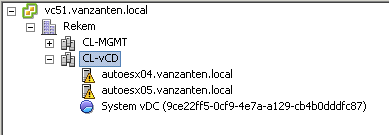

The next screenshot shows the vCloud ClusterI have running and as you can see, there are no VMs setup yet and only the basic System Resource pools has been created by vCloud Director.

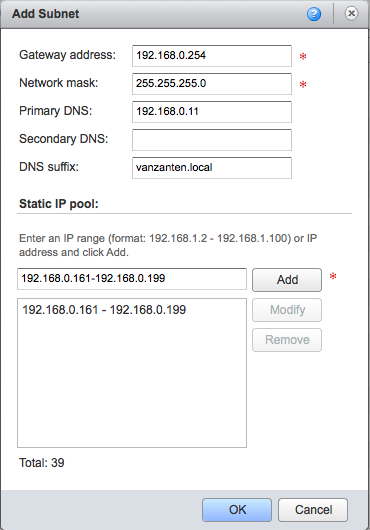

VCloud Empty ClusterI have already created a Provider VDC named “Provider-01″. From the vCloud “Home” page I now select “Create External Networks”. With this step I create an external network which is my connection between my vCloud and the world outside. Click “Create External Networks” and the wizard will start. Select the vCenter that hosts my vCloud and select the vSphere Network (port group) that will be used to connect to the External Network. In my case this is dvPG-ExternalCloud with VLAN 0. Click next to move to the “Configure External Network” page. Click Add to enter the details of your external network. Remember, the external network is the network that is connecting my “home network” so the DNS and Gateway servers are the same I would use for all systems in my home network (not part of the vCloud). Also you need to enter a Static IP pool. This IP pool is a range of IP addresses that will be used by vCloud to directly connect to the external network. In my case I reserved the range 192.168.0.161 to 192.168.0.199. Click OK after you have completed the screen. Give the external network a name, in my case “vCloud-External” and click finish.

VCloud External Network

Create a network pool

When vCloud deploys vApps it uses VLANs to keep all the different vApps separated from each other at the networking level. For this first a set of VLANs has to be assigned (a pool) which vCloud can use. There are three types of network pools which I’m not going to explain any further. For my home lab I used the very simple “vSphere Port Group backed” network pool which will just take a set of pre-defined port groups from your vCenter environment and use them when deploying a vApp or OrgNetwork. In vCenter I created the following port groups: dvPG-vCloud-200 through dvPG-vCloud-205 holding the VLAN IDs 200 – 205.

On the “Home” screen, select “Create a network pool”. The wizard will start and present three types of Network Pools, select the “vSphere Port group backed”, next select vCenter and in the next screen select the Port Groups that need to be added. In my case dvPG-vCloud-200 through dvPG-vCloud-205. The network pool name will be “dvPG 200-205″.

Create a new organization

To be able to deploy VMs we need an organization. From the “Home” screen I select “Create a new organization” and the wizard will start. Enter the organization name ( “HomeLab” ) enter the Organization full name: “Home Lab”. Next select “Do not use LDAP” and then add a new local user and give him admin rights. I created the user vCloudUser. Walk through the rest of the wizard and select the options you prefer. When you’re done you have a new organization “HomeLab”.

Allocate Resources to an organization

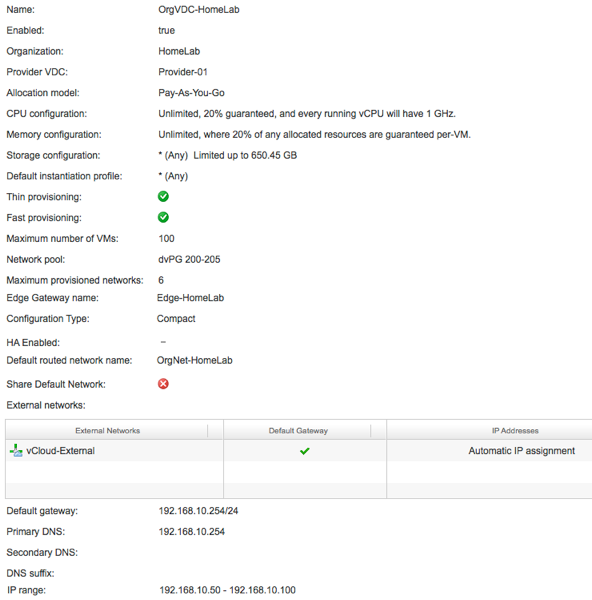

With allocating resources to an organization you’re actually creating an Organization VDC. Again there is a wizard to walk through. The first steps are not that interesting for this post and I’ll start with the step “Select Network Pool & Services”. This is where you tell vCloud which networks (VLANs) it is allowed to use. Select the network pool created earlier (dvPG 200-205) and set the quota to 6. Click next to “Configure Edge Gateway”. Select “Create a new edge gateway” and name it “Edge-HomeLab”. Choose configuration option “Compact”, leave “Enable High Availability” unchecked. Select “Configure IP settings” and select “Sub-Allocate IP Pools”.

Why Select the “Sub-Allocate IP Pools”? That wasn’t clear to me at first either, but it seems that for NAT connections, the Edge Gateway needs an EXTRA (outside) IP address, it will not use the IP that was assigned to the outside nic of the Edge Gateway. This I think has been one of the things I struggled with the most, because I expected the Edge Gateway to just use its own outside IP and when configuring NAT, there is no warning that you also need to have a “Sub-Allocate IP pool” to make it work.

Back to the wizard. “Sub-Allocate IP pools” has been selected and now press next to “Configure External Networks”. There is only one thing to do here, select the External network this Organization VDC has access to, in my case “vCloud-External”. Also select “Default Gateway for DNS relay”. Press next to go to “Configure IP Settings”. Here you’ll see the external network, what subnet it connects to and the IP address assignment which defaults to “Auto”. Just to see what is assigned, click “Change IP assignment”. Here you’ll see the “Allocated IP address range” we defined earlier ( 192.168.0.161 through 199). Cancel the screen and continue the wizard to “Sub-Allocate IP Pools”.

As explained above, the Sub-Allocate IP pool is used for NAT translation on the Edge Gateway. In this screen you select a sub set of IP addresses from the IP Pool that is already assigned to the external network. In my case I used only 1 IP address: 192.168.0.162. Click Next for the last step in this wizard to create an Organizational VDC network. As seen in the Network plan, I want to use the IP range 192.168.10.0/24 for this organizational network. Select “Create a network for this virtual datacenter connected to this new edge gateway” and enter the network name. In my case this is: “OrgNet-HomeLab”. Now enter the Gateway address: 192.168.10.254 with network mask: 255.255.255.0. Select “Use Gateway DNS” and add a Static IP Pool of 192.168.10.50 through 192.168.10.100. Click Next for the last screen and name the Organization VDC: “OrgVDC-HomeLab”. After clicking finish watch your vCenter and see all the actions that are conducted by vCloud.

VCloud OrganizationVDC

Deploying a vApp

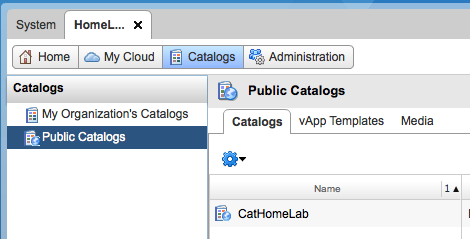

To be able to deploy a vApp, an organizational catalog is needed first. From the “Home” screen click “Add a catalog to an organization” and walk through the wizard to create a catalog for the “HomeLab” organization and name it “CatHomeLab”. Choose “Publish to all organizations” just for ease of use. After the wizard finishes go to “Manage Organizations”. In the left pane you’ll see the “Manage & Monitor” section with the “Organizations” selected. On the right hand side select the “HomeLab” organization and open it. You’ll see and extra tab for the organization and the available catalogs. Open the “CatHomeLab” that was just created.

VCloud PublicCatalogs

After opening the CatHomeLab, you’ll see the vApp Templates tab where you can import a new VM. I have a small Ubuntu VM that I use for testing which has the VMware Tools installed and uses DHCP to get an IP address. I import this VM from my vSphere environment. After the VM has been imported, go to the My Cloud tab and click “vApps” on the left hand side. Click “New vApp” and walk through the wizard. Name the vApp “vApp-01″, give it a runtime and storage lease, select the Ubuntu VM and add it twice! Click next to move to “Configure Resources”. Name the VMs “Ubuntu 01″ and “Ubuntu 02″, select the default storage profile. Next go to configure “Virtual Machines” and set the Computer Names to “Ubuntu 01″ and “Ubuntu 02″. In the column “Network” select the “OrgNet-HomeLab” network and set the IP assignment to “DHCP”. Since we’ve not yet created a DHCP pool we’ll do that after the wizard finishes.  Click Next for the “Configure Networking” page, leave “Fence vApp” unselected. Click Finish. You’ll now see how the vApp-01 is being created.

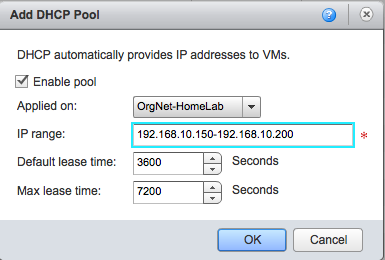

Let’s not forget to create a DHCP pool. Since the vApp will be connected to the OrgNet-HomeLab network, the DHCP range should be enabled for that network. On the “HomeLab” tab, go to the “Administration” section, click “Virtual Datacenters”, open the “OrgVDC-HomeLab” on the right hand side and then choose the “Org VDC Networks” tab. You’ll now see the “OrgNet-HomeLab” network. Click right, select “Configure Services” and on the “DHCP” tab enable DHCP and add the range: 192.168.10.150-192.168.10.200.

VCloud DHCP

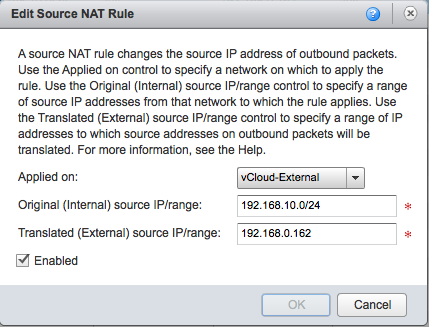

Since one of the tests I wanted to perform is to show that the VMs can get onto the internet through NAT, a NAT rule has to be created. Go to the second tab “NAT” and create a SNAT (Source NAT) rule. For “Applied On” select the “vCloud-External” network. For the Original Internal Source IP / Range select “192.168.10.0/24″, the whole subnet will be NAT-ed when going to the internet. For the “Translated (External) Source IP range” enter the sub allocated IP address 192.168.0.162. After setting the SNAT rule, switch to the firewall tab and disable the firewall. We don’t want to make it too hard the first time. Click OK to close the “Configure Services” window.

VCloud SNAT

Now it is time to start the vApp and check if everything is working. Go to the “HomeLab” tab, select “vApps”, select “vApp-01″ and press “Start”. In the vCenter interface you’ll now see how the VMs are powered on. If everything goes well you can see the IP address of the VMs through the VMware Tools in vCenter (if you have a VM with VMware Tools installed). This is also visible in the vCloud web interface by opening the “vApp-01″ and click on the “virtual machines” tab. The IP addresses 192.168.10.150 and 192.168.10.151 should be shown. But the ultimate test is of course to log into the VMs using the vSphere or vCloud Console and perform some simple tests:

  • Logon to the first VM and check what IP address was assigned:   ifconfig
  • Ping the other VM:   ping 192.168.10.151
  • Ping your default gateway: ping 192.168.10.254
  • Ping any other system in your home network: ping 192.168.0.11
  • Test DNS nameresolution:  nslookup www.GabesVirtualWorld.com (Remember name resolution is done by the Gateway)
  • Download a webpage:  wget http://www.GabesVirtualWorld.com

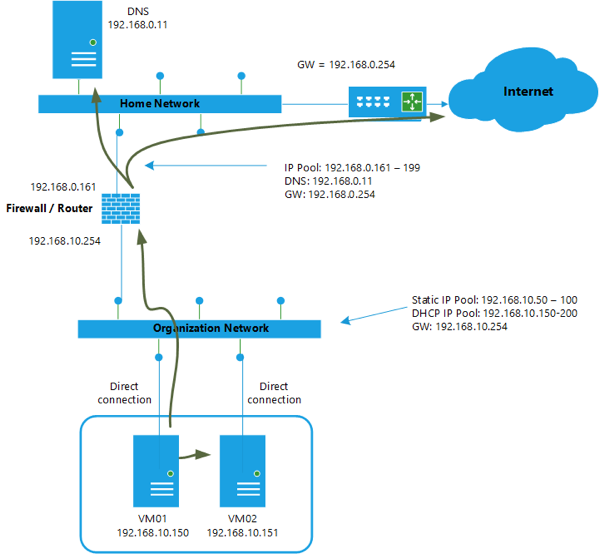

And we’re done!!! Going back to the network design, we can now complete the design with specific details from this vCloud. In the next post I will add some vApp networks.

Vcloud networking fase1
